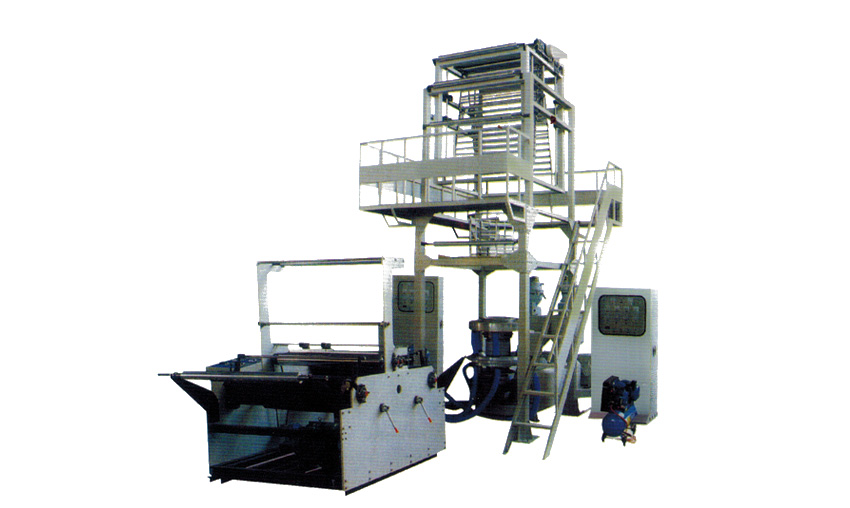

Double-layers??Co-extruding Low and High Density Polyethylene Film Blowing Machine
-
This unit is used to blow high density polyethylene (HDPE), low density polyethylene (LDPE), and linear low density polyethylene (LLDPE) plastic films. Widely used in the packaging of household and industrial products such as food, clothing, textiles, and daily necessities.。
The extruder, barrel and screw of the unit are made of high-quality alloy steel. After nitriding treatment and precision processing, it has high quality hardness and corrosion resistance. The specially designed screw has high output and good plasticization. The main engine adopts frequency conversion speed regulation, which increases the stability of the main engine speed regulation. The screw barrel adopts 38 chrome molybdenum aluminum, and is nitrided. The traction frame adopts lifting type, which can achieve the cooling effect regardless of blowing large and small size film. optimal. The winding is made of independent large rubber roller (single or double), which can be opened and edged, and the rotating head makes the film blowing better.
| 型號 | Model | SJ-45x2 | SJ-50x2 | SJ-55x2 |
| 螺桿直徑（mm） | Screw Diameter（mm） | ￠45x2 |
￠50x2 |
￠55x2 |
| 螺桿長徑比（L/D） | Screw Ratio（L/D） | 28:1 | 28:1 | 28:1 |
| 螺桿最大轉(zhuǎn)速（r/min） | Screw Speed（r/min） | 120 |
120 |
120 |
| 主電機功率（Kw） | Power of Main Motor（kw） |
7.5KW變頻x2臺 |
11KW變頻x2臺 | 15KW變頻x2臺 |
| 生產(chǎn)能力（kg） | Max.output | 40kg/h | 50kg/h | 60kg/h |
| 薄膜單面厚度（mm） | gel-sided Thickbess of Film（mm） | 0.008-0.15mm |
0.008-0.15mm |
0.008-0.15mm |
| 吹膜寬度（mm） | Max.Folding Width of Film（mm） | 200-600 | 300-800 | 400-100 |
| 總功率（Kw） | Electric Total Capacity（kw） | 50 | 60 | 70 |
| 機械高度（m） | Height（m） | 3.8-4 | 4-4.5 | 4.2-4.8 |
| 外形尺寸（L*W*H）（mm） | Overall dimension （L*W*H）（mm） | 4500x2000x3800 |
4800x2100x4300 |
5000x2200x4500 |
